Technical Scribble

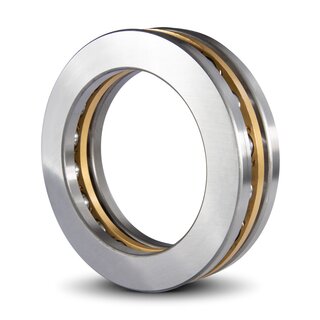

Axial Deep Groove Ball Bearing 51232-M 160x225x51 mm
For forces in the shaft direction. The thrust bearing 51232-M absorbs high loads from an axial direction and can be dismantled. Main dimensions according to DIN 711.
Technical Data
| Inside (mm): | 160 |
| Outside (mm): | 225 |
| Width (mm): | 51 |
| Tolerance for inside (mm): | 0/-0,025 |
| Tolerance for outside (mm): | 0/-0,03 |
| Tolerance for width (mm): | 0,025/-0,4 |
| Inside Housing Washer (mm): | 163 |
| Rows Of Balls: | single row |
| Flange: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Brass |
| Full Complement Ball Set: | no |
| Outside Shaft Washer (mm): | 163 |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 6,5300 kg |
Item number: 51232-M
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 163.66
pcs
