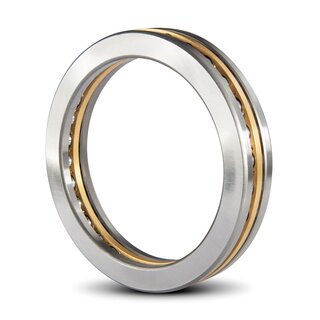

Axial Deep Groove Ball Bearing 51130-M 150x190x31 mm
For forces in the shaft direction. The thrust bearing 51130-M absorbs loads from an axial direction and can be dismantled. Main dimensions according to DIN 711.
Technical Data
| Inside (mm): | 150 |
| Outside (mm): | 190 |
| Width (mm): | 31 |
| Tolerance for inside (mm): | 0/-0,025 |
| Tolerance for outside (mm): | 0/-0,03 |
| Tolerance for width (mm): | 0,025/-0,4 |
| Inside Housing Washer (mm): | 152 |
| Rows Of Balls: | single row |
| Flange: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Brass |
| Full Complement Ball Set: | no |
| Outside Shaft Washer (mm): | 152 |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 2,1800 kg |
Item number: 51130-M
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 52.20
pcs
