Double Row Deep Groove Ball Bearing 4209 open TN oiled 45x85x23 mm

Double row design for higher load capacity. The double row deep groove ball bearing 4209-TN has a higher load capacity than comparable single row deep groove ball bearings, but is only slightly wider. Main dimensions according to DIN 625-3.

Technical Data

Inside (mm):	45
Outside (mm):	85
Width (mm):	23
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,6050 kg

Item number: 4209-TN-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 21.01

pcs

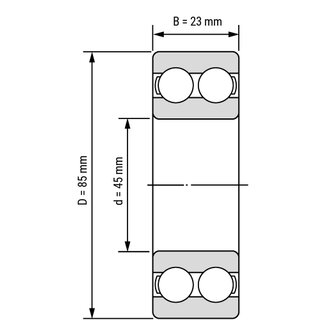

Technical Scribble
