Tapered Roller Bearing 33212 60x110x38 mm

The massive tapered roller bearing 33212 has tapered rollers as rolling elements and is suitable for very high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

Technical Data

Inside (mm):	60
Outside (mm):	110
Bearing Width (mm):	38
Width Outer Ring (mm):	29
Width Inner Ring (mm):	38
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,018
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,15
Tolerance For Width Inner Ring (mm):	0/-0,15
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	1,5700 kg

Item number: 33212

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 20.69

pcs

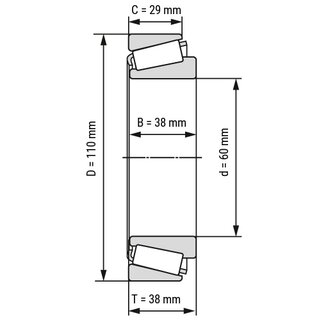

Technical Scribble
