Tapered Roller Bearing 33117 85x140x41 mm

The tapered roller bearing 33117 has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

Technical Data

Inside (mm):	85
Outside (mm):	140
Bearing Width (mm):	41
Width Outer Ring (mm):	32
Width Inner Ring (mm):	41
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,02
Tolerance for width of the bearing (mm):	0,2/-0,2
Tolerance For Width Outer Ring (mm):	0/-0,2
Tolerance For Width Inner Ring (mm):	0/-0,2
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	2,4300 kg

Item number: 33117

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 43.50

pcs

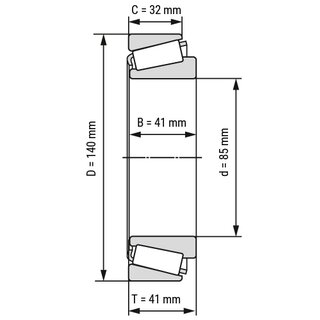

Technical Scribble
