Tapered Roller Bearing 33012 60x95x27 mm

The tapered roller bearing 33012 has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

Technical Data

Inside (mm):	60
Outside (mm):	95
Bearing Width (mm):	27
Width Outer Ring (mm):	21
Width Inner Ring (mm):	27
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,018
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,15
Tolerance For Width Inner Ring (mm):	0/-0,15
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,7190 kg

Item number: 33012

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 20.85

pcs

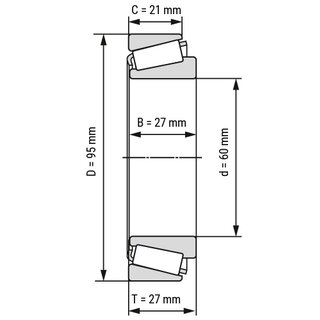

Technical Scribble
