Tapered Roller Bearing 33010 50x80x24 mm

The tapered roller bearing 33010 has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

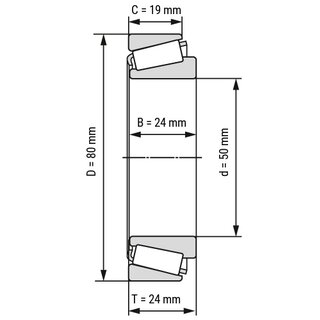

Technical Data

Inside (mm):	50
Outside (mm):	80
Bearing Width (mm):	24
Width Outer Ring (mm):	19
Width Inner Ring (mm):	24
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,016
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,15
Tolerance For Width Inner Ring (mm):	0/-0,15
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,4510 kg

Item number: 33010

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 16.80

pcs

Technical Scribble

Technical Data

Inside (mm):	50
Outside (mm):	80
Bearing Width (mm):	24
Width Outer Ring (mm):	19
Width Inner Ring (mm):	24
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,016
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,15
Tolerance For Width Inner Ring (mm):	0/-0,15
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,4510 kg

Technical Scribble

Tapered Roller Bearing 33010 50x80x24 mm
