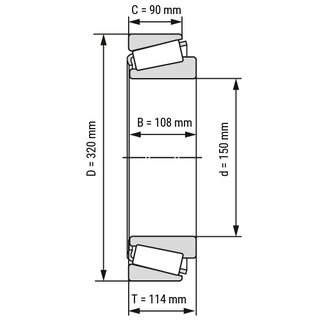

Tapered Roller Bearing 32330 150x320x114 mm

The massive tapered roller bearing 32330 has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

Technical Data

Inside (mm):	150
Outside (mm):	320
Bearing Width (mm):	114
Width Outer Ring (mm):	90
Width Inner Ring (mm):	108
Tolerance for inside (mm):	0/-0,025
Tolerance for outside (mm):	0/-0,04
Tolerance for width of the bearing (mm):	0,35/-0,25
Tolerance For Width Outer Ring (mm):	0/-0,25
Tolerance For Width Inner Ring (mm):	0/-0,25
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	42,0000 kg

Item number: 32330

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 388.48

pcs

Technical Scribble

Technical Data

Inside (mm):	150
Outside (mm):	320
Bearing Width (mm):	114
Width Outer Ring (mm):	90
Width Inner Ring (mm):	108
Tolerance for inside (mm):	0/-0,025
Tolerance for outside (mm):	0/-0,04
Tolerance for width of the bearing (mm):	0,35/-0,25
Tolerance For Width Outer Ring (mm):	0/-0,25
Tolerance For Width Inner Ring (mm):	0/-0,25
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	42,0000 kg
