Tapered Roller Bearing 32328 140x300x107.75 mm

The massive tapered roller bearing 32328 has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

Technical Data

Inside (mm):	140
Outside (mm):	300
Bearing Width (mm):	107.75
Width Outer Ring (mm):	85
Width Inner Ring (mm):	102
Tolerance for inside (mm):	0/-0,025
Tolerance for outside (mm):	0/-0,035
Tolerance for width of the bearing (mm):	0,35/-0,25
Tolerance For Width Outer Ring (mm):	0/-0,25
Tolerance For Width Inner Ring (mm):	0/-0,25
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	35,1000 kg

Item number: 32328

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 294.24

pcs

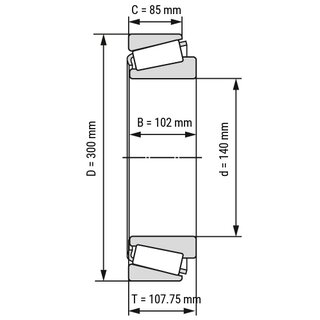

Technical Scribble
