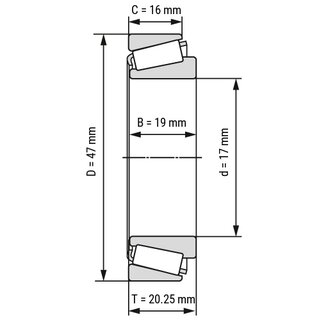

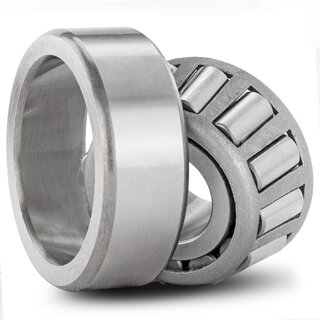

Tapered Roller Bearing 32303 17x47x20.25 mm

The massive tapered roller bearing 32303 has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

Technical Data

Inside (mm):	17
Outside (mm):	47
Bearing Width (mm):	20.25
Width Outer Ring (mm):	16
Width Inner Ring (mm):	19
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,014
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,12
Tolerance For Width Inner Ring (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1760 kg

Item number: 32303

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 5.40

pcs

Technical Scribble

Technical Data

Inside (mm):	17
Outside (mm):	47
Bearing Width (mm):	20.25
Width Outer Ring (mm):	16
Width Inner Ring (mm):	19
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,014
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,12
Tolerance For Width Inner Ring (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1760 kg
