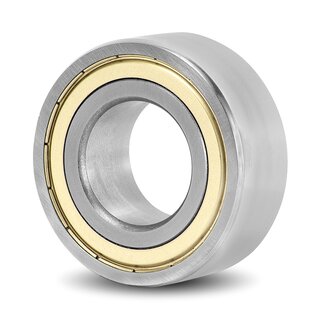

Angular Ball Bearing 5204 ZZ / 2Z C2 / 3204 ZZ / 2Z C2 20x47x20.6 mm

Double row design for higher load capacity. The double-row angular contact ball bearing 5204 ZZ / 2Z C2 with reduced internal clearance is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	20
Outside (mm):	47
Width (mm):	20.6
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	ZZ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Product weight:	0,1610 kg

Item number: 3204-ZZ-C2

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 12.24

pcs

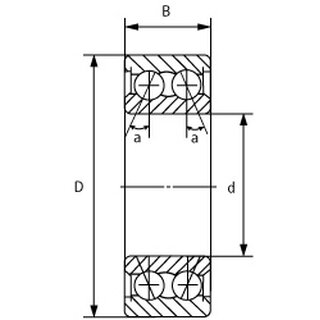

Technical Scribble

Technical Data

Inside (mm):	20
Outside (mm):	47
Width (mm):	20.6
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Contact Angle:	30
Rows Of Balls:	double row
Seal:	ZZ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Product weight:	0,1610 kg

Technical Scribble

Angular Ball Bearing 5204 ZZ / 2Z C2 / 3204 ZZ / 2Z C2 20x47x20.6 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
