Technical Scribble

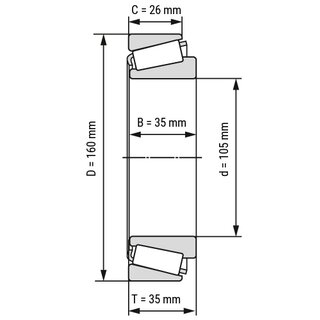

Tapered Roller Bearing 32021 X 105x160x35 mm
The tapered roller bearing 32021-X has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions. Main dimensions according to DIN 720.
Technical Data
| Inside (mm): | 105 |
| Outside (mm): | 160 |
| Bearing Width (mm): | 35 |
| Width Outer Ring (mm): | 26 |
| Width Inner Ring (mm): | 35 |
| Tolerance for inside (mm): | 0/-0,02 |
| Tolerance for outside (mm): | 0/-0,025 |
| Tolerance for width of the bearing (mm): | 0,2/-0,2 |
| Tolerance For Width Outer Ring (mm): | 0/-0,2 |
| Tolerance For Width Inner Ring (mm): | 0/-0,2 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 2,4500 kg |
Item number: 32021-X
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 94.50
pcs
Technical Scribble
Technical Data
| Inside (mm): | 105 |
| Outside (mm): | 160 |
| Bearing Width (mm): | 35 |
| Width Outer Ring (mm): | 26 |
| Width Inner Ring (mm): | 35 |
| Tolerance for inside (mm): | 0/-0,02 |
| Tolerance for outside (mm): | 0/-0,025 |
| Tolerance for width of the bearing (mm): | 0,2/-0,2 |
| Tolerance For Width Outer Ring (mm): | 0/-0,2 |
| Tolerance For Width Inner Ring (mm): | 0/-0,2 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 2,4500 kg |
