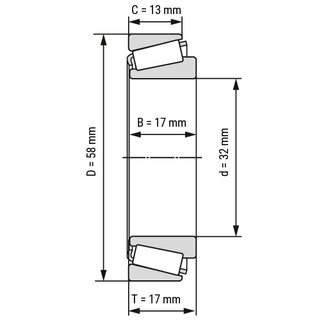

Tapered Roller Bearing 320/32 32x58x17 mm

The tapered roller bearing 320/32 has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

Technical Data

Inside (mm):	32
Outside (mm):	58
Bearing Width (mm):	17
Width Outer Ring (mm):	13
Width Inner Ring (mm):	17
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,016
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,12
Tolerance For Width Inner Ring (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1960 kg

Item number: 320/32

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 14.44

pcs
