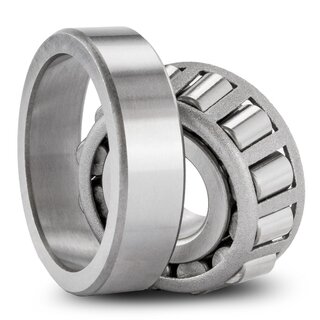

Tapered Roller Bearing 30302 15x42x14.25 mm

The tapered roller bearing 30302 has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

Technical Data

Inside (mm):	15
Outside (mm):	42
Bearing Width (mm):	14.25
Width Outer Ring (mm):	11
Width Inner Ring (mm):	13
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,014
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,12
Tolerance For Width Inner Ring (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0980 kg

Item number: 30302

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 3.45

pcs

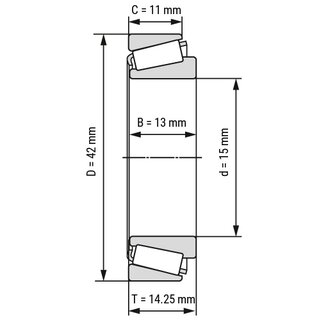

Technical Scribble

Technical Data

Inside (mm):	15
Outside (mm):	42
Bearing Width (mm):	14.25
Width Outer Ring (mm):	11
Width Inner Ring (mm):	13
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,014
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,12
Tolerance For Width Inner Ring (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,0980 kg
