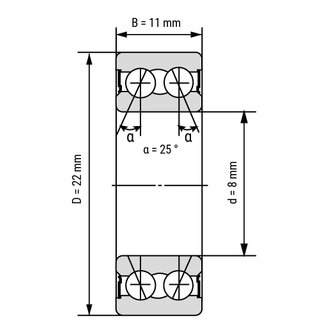

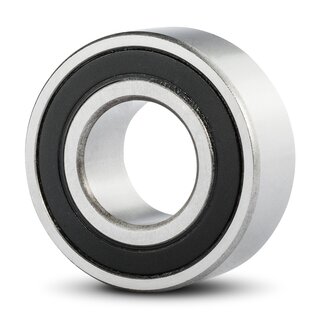

Angular Ball Bearing 30/8 2RS TN 8x22x11 mm

Double row design for higher load capacity. The double-row angular contact ball bearing 30/8-2RS-TN is ideal for high combined loads from the radial and axial directions. Main dimensions according to DIN 628-3.

Technical Data

Inside (mm):	8
Outside (mm):	22
Width (mm):	11
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Contact Angle:	25
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0200 kg

Item number: 30/8-2RS-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 4.42
