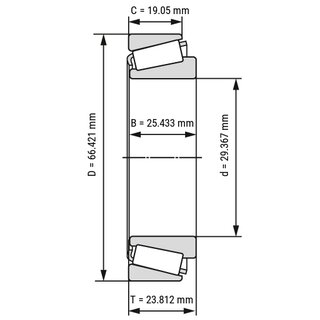

Technical Scribble
Tapered Roller Bearing 2690 - 2631 29.367x66.421x23.812 mm
The tapered roller bearing 2690 - 2631 in inch-size has tapered rollers as rolling elements and is suitable for high combined loads from the radial and axial directions.
Technical Data
| Inside (mm): | 29.367 |
| Outside (mm): | 66.421 |
| Bearing Width (mm): | 23.812 |
| Width Outer Ring (mm): | 19.05 |
| Width Inner Ring (mm): | 25.433 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,3900 kg |
Item number: 2690 - 2631
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 28.11
pcs
Technical Scribble
Technical Data
| Inside (mm): | 29.367 |
| Outside (mm): | 66.421 |
| Bearing Width (mm): | 23.812 |
| Width Outer Ring (mm): | 19.05 |
| Width Inner Ring (mm): | 25.433 |
| Tolerance for inside (mm): | 0,012/0 |
| Tolerance for outside (mm): | 0,025/0 |
| Tolerance for width of the bearing (mm): | 0,2/0 |
| Tolerance For Width Outer Ring (mm): | 0/-0,12 |
| Tolerance For Width Inner Ring (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,3900 kg |
