Technical Scribble

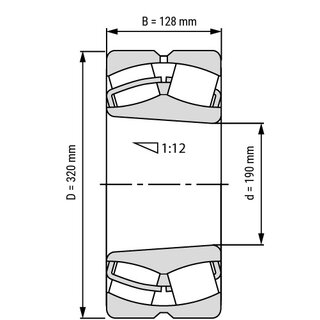

Spherical Roller Bearing 24138 CC K (tapered) W33 190x320x128 mm
With the swiveling inner ring, the spherical roller bearing 24138-CC-K-W33 offers excellent alignment error compensation. It has two rings with barrel-shaped rollers as rolling elements and can absorb very high radial and also axial forces. Main dimensions according to DIN 635-2.
Technical Data
Inside (mm): | 190 |
Outside (mm): | 320 |
Width (mm): | 128 |
Tolerance for inside (mm): | 0/-0,03 |
Tolerance for outside (mm): | 0/-0,04 |
Tolerance for width (mm): | 0/-0,3 |
Bore: | tapered (K) |
Ring Material: | Rolling bearing steel |
Rolling Element Material: | Rolling bearing steel |
Cage Material: | Sheet Steel |
Tolerance Class: | ABEC 1 / P0 |
Magnetic: | yes |
Permissible angular misalignment: | 3.5 |
Product weight: | 40,1000 kg |
Item number: 24138-CC-K-W33
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 890.00
pcs
