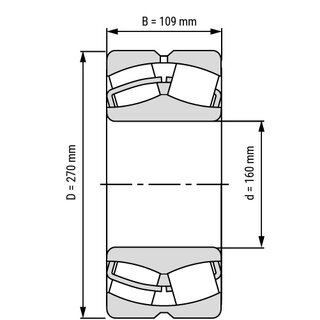

Technical Scribble
Spherical Roller Bearing 24132 CC W33 160x270x109 mm
With the swiveling inner ring, the spherical roller bearing 24132-CC-W33 offers excellent alignment error compensation. It has two rings with barrel-shaped rollers as rolling elements and can absorb very high radial and also axial forces. Main dimensions according to DIN 635-2.
Technical Data
Inside (mm): | 160 |
Outside (mm): | 270 |
Width (mm): | 109 |
Tolerance for inside (mm): | 0/-0,025 |
Tolerance for outside (mm): | 0/-0,035 |
Tolerance for width (mm): | 0/-0,25 |
Bore: | cylindrical |
Ring Material: | Rolling bearing steel |
Rolling Element Material: | Rolling bearing steel |
Cage Material: | Sheet Steel |
Tolerance Class: | ABEC 1 / P0 |
Magnetic: | yes |
Permissible angular misalignment: | 3.5 |
Product weight: | 25,3000 kg |
Item number: 24132-CC-W33
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 490.00
pcs
Technical Scribble
Technical Data
Inside (mm): | 160 |
Outside (mm): | 270 |
Width (mm): | 109 |
Tolerance for inside (mm): | 0/-0,025 |
Tolerance for outside (mm): | 0/-0,035 |
Tolerance for width (mm): | 0/-0,25 |
Bore: | cylindrical |
Ring Material: | Rolling bearing steel |
Rolling Element Material: | Rolling bearing steel |
Cage Material: | Sheet Steel |
Tolerance Class: | ABEC 1 / P0 |
Magnetic: | yes |
Permissible angular misalignment: | 3.5 |
Product weight: | 25,3000 kg |
