- 23228-CC-W33
Technical Scribble

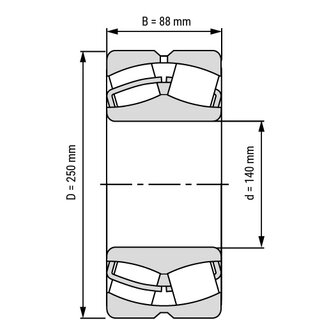

Spherical Roller Bearing 23228 CC W33 140x250x88 mm
With the swiveling inner ring, the spherical roller bearing 23228-CC-W33 offers excellent alignment error compensation. It has two rings with barrel-shaped rollers as rolling elements and can absorb very high radial and also axial forces. Main dimensions according to DIN 635-2.
Technical Data
| Inside (mm): | 140 |
| Outside (mm): | 250 |
| Width (mm): | 88 |
| Tolerance for inside (mm): | 0/-0,025 |
| Tolerance for outside (mm): | 0/-0,03 |
| Tolerance for width (mm): | 0/-0,25 |
| Bore: | cylindrical |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Permissible angular misalignment: | 3.5 |
| Product weight: | 19,0000 kg |
Item number: 23228-CC-W33
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 335.10
pcs
Technical Scribble
Technical Data
| Inside (mm): | 140 |
| Outside (mm): | 250 |
| Width (mm): | 88 |
| Tolerance for inside (mm): | 0/-0,025 |
| Tolerance for outside (mm): | 0/-0,03 |
| Tolerance for width (mm): | 0/-0,25 |
| Bore: | cylindrical |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Permissible angular misalignment: | 3.5 |
| Product weight: | 19,0000 kg |
