Spherical Roller Bearing 23224 CA K (tapered) W33 120x215x76 mm

With the swiveling inner ring, the spherical roller bearing 23224-CA-K-W33 offers excellent alignment error compensation. It has two rings with barrel-shaped rollers as rolling elements and can absorb very high radial and also axial forces. Main dimensions according to DIN 635-2.

Technical Data

Inside (mm):	120
Outside (mm):	215
Width (mm):	76
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,03
Tolerance for width (mm):	0/-0,2
Bore:	tapered (K)
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	3.5
Product weight:	12,2000 kg

Item number: 23224-CA-K-W33

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 242.19

pcs

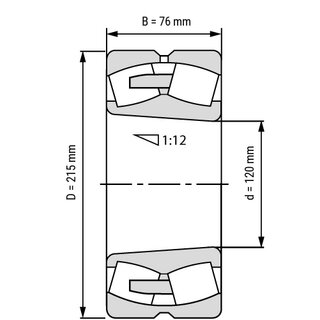

Technical Scribble
