Technical Scribble

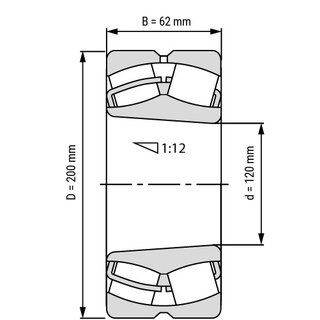

Spherical Roller Bearing 23124 CC K (tapered) W33 120x200x62 mm
With the swiveling inner ring, the spherical roller bearing 23124-CC-K-W33 offers excellent alignment error compensation. It has two rings with barrel-shaped rollers as rolling elements and can absorb very high radial and also axial forces. Main dimensions according to DIN 635-2.
Technical Data
| Inside (mm): | 120 |
| Outside (mm): | 200 |
| Width (mm): | 62 |
| Tolerance for inside (mm): | 0/-0,02 |
| Tolerance for outside (mm): | 0/-0,03 |
| Tolerance for width (mm): | 0/-0,2 |
| Bore: | tapered (K) |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Permissible angular misalignment: | 3 |
| Product weight: | 7,9800 kg |
Item number: 23124-CC-K-W33
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 168.50
pcs
Technical Scribble
Technical Data
| Inside (mm): | 120 |
| Outside (mm): | 200 |
| Width (mm): | 62 |
| Tolerance for inside (mm): | 0/-0,02 |
| Tolerance for outside (mm): | 0/-0,03 |
| Tolerance for width (mm): | 0/-0,2 |
| Bore: | tapered (K) |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Permissible angular misalignment: | 3 |
| Product weight: | 7,9800 kg |
