Spherical Roller Bearing 23122 CA W33 110x180x56 mm

With the swiveling inner ring, the spherical roller bearing 23122-CA-W33 offers excellent alignment error compensation. It has two rings with barrel-shaped rollers as rolling elements and can absorb very high radial and also axial forces. Main dimensions according to DIN 635-2.

Technical Data

Inside (mm):	110
Outside (mm):	180
Width (mm):	56
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,2
Bore:	cylindrical
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	3
Product weight:	5,7200 kg

Item number: 23122-CA-W33

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 153.18

pcs

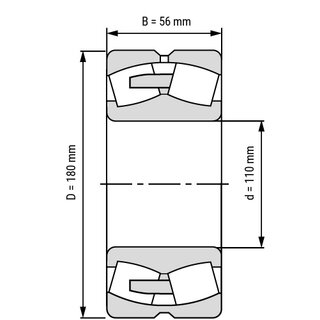

Technical Scribble
