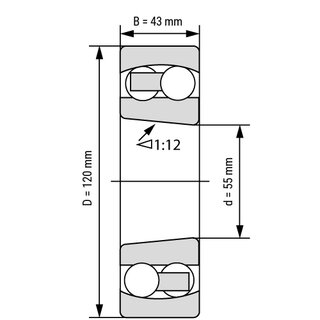

Self-Aligning Ball Bearing 2311 K (tapered) TN 55x120x43 mm

With the swiveling inner ring, the self aligning ball bearing 2311-K-TN offers excellent alignment error compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. Main dimensions according to DIN 630.

Technical Data

Inside (mm):	55
Outside (mm):	120
Width (mm):	43
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	double row
Bore:	tapered (K)
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	3
Product weight:	2,1000 kg

Item number: 2311-K-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 25.84
