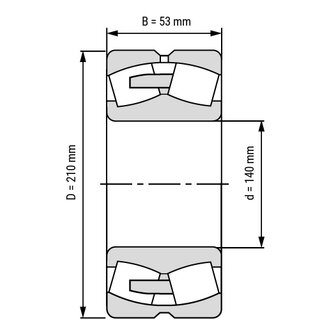

Spherical Roller Bearing 23028 CA W33 140x210x53 mm

With the swiveling inner ring, the spherical roller bearing 23028-CA-W33 offers excellent alignment error compensation. It has two rings with barrel-shaped rollers as rolling elements and can absorb very high radial and also axial forces. Main dimensions according to DIN 635-2.

Technical Data

Inside (mm):	140
Outside (mm):	210
Width (mm):	53
Tolerance for inside (mm):	0/-0,025
Tolerance for outside (mm):	0/-0,03
Tolerance for width (mm):	0/-0,25
Bore:	cylindrical
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	2.5
Product weight:	6,6200 kg

Item number: 23028-CA-W33

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 207.12

pcs

Technical Scribble

Technical Data

Inside (mm):	140
Outside (mm):	210
Width (mm):	53
Tolerance for inside (mm):	0/-0,025
Tolerance for outside (mm):	0/-0,03
Tolerance for width (mm):	0/-0,25
Bore:	cylindrical
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	2.5
Product weight:	6,6200 kg
