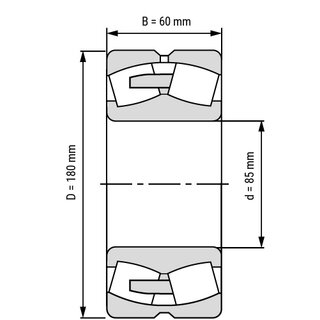

Spherical Roller Bearing 22317 CA W33 85x180x60 mm

With the swiveling inner ring, the spherical roller bearing 22317-CA-W33 offers excellent alignment error compensation. It has two rings with barrel-shaped rollers as rolling elements and can absorb very high radial and also axial forces. Main dimensions according to DIN 635-2.

Technical Data

Inside (mm):	85
Outside (mm):	180
Width (mm):	60
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,2
Bore:	cylindrical
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	3
Product weight:	7,4700 kg

Item number: 22317-CA-W33

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 148.01

pcs

Technical Scribble

Technical Data

Inside (mm):	85
Outside (mm):	180
Width (mm):	60
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,2
Bore:	cylindrical
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	3
Product weight:	7,4700 kg
