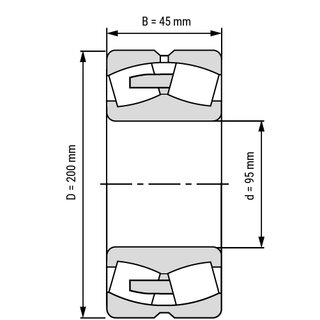

Spherical Roller Bearing 21319 CA W33 95x200x45 mm

With the swiveling inner ring, the spherical roller bearing 21319-CA-W33 offers excellent alignment error compensation. It has two rings with barrel-shaped rollers as rolling elements and can absorb very high radial and also axial forces. Main dimensions according to DIN 635-2.

Technical Data

Inside (mm):	95
Outside (mm):	200
Width (mm):	45
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,03
Tolerance for width (mm):	0/-0,2
Bore:	cylindrical
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	2
Product weight:	7,1600 kg

Item number: 21319-CA-W33

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
