Deep Groove Ball Bearing 16024 open oiled 120x180x19 mm

The deep groove ball bearing 16024 is narrow. It is particularly suitable for achieving a good load capacity and high speeds in limited space conditions. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	120
Outside (mm):	180
Width (mm):	19
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,2
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	1,8000 kg

Item number: 16024-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 35.71

pcs

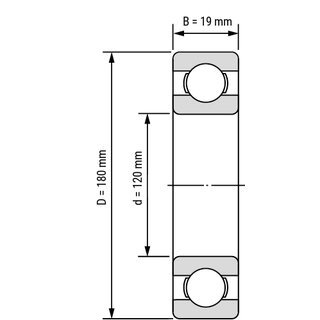

Technical Scribble
