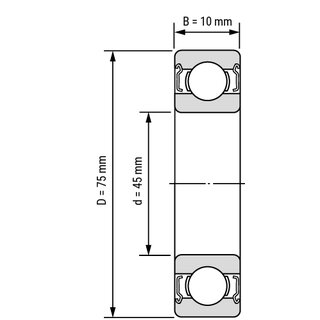

Deep Groove Ball Bearing 16009 ZZ / 2Z 45x75x10 mm

The deep groove ball bearing 16009-ZZ / 2Z is narrow. It is particularly suitable for achieving a good load capacity and high speeds in limited space conditions. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	45
Outside (mm):	75
Width (mm):	10
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	ZZ
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,1700 kg

Item number: 16009-ZZ

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
