Deep Groove Ball Bearing 16003 ZZ / 2Z 17x35x8 mm

The deep groove ball bearing 16003-ZZ / 2Z is narrow. It is particularly suitable for achieving a good load capacity and high speeds in limited space conditions. Main dimensions according to DIN 625-1.

Technical Data

Inside (mm):	17
Outside (mm):	35
Width (mm):	8
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	ZZ
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0320 kg

Item number: 16003-ZZ

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 2.01

pcs

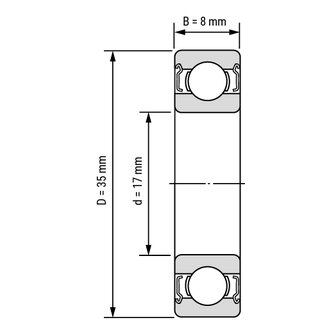

Technical Scribble

Technical Data

Inside (mm):	17
Outside (mm):	35
Width (mm):	8
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	ZZ
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,0320 kg

Technical Scribble
