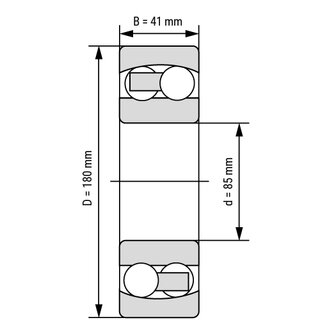

Technical Scribble
Self-Aligning Ball Bearing 1317 85x180x41 mm
With the swiveling inner ring, the self aligning ball bearing 1317 offers excellent alignment error compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. Main dimensions according to DIN 630.
Technical Data
| Inside (mm): | 85 |
| Outside (mm): | 180 |
| Width (mm): | 41 |
| Tolerance for inside (mm): | 0/-0,02 |
| Tolerance for outside (mm): | 0/-0,025 |
| Tolerance for width (mm): | 0/-0,2 |
| Rows Of Balls: | double row |
| Bore: | cylindrical |
| Extended Inner Ring: | nein |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Permissible angular misalignment: | 3 |
| Product weight: | 4,9800 kg |
Item number: 1317
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 55.12
pcs
Technical Scribble
Technical Data
| Inside (mm): | 85 |
| Outside (mm): | 180 |
| Width (mm): | 41 |
| Tolerance for inside (mm): | 0/-0,02 |
| Tolerance for outside (mm): | 0/-0,025 |
| Tolerance for width (mm): | 0/-0,2 |
| Rows Of Balls: | double row |
| Bore: | cylindrical |
| Extended Inner Ring: | nein |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Permissible angular misalignment: | 3 |
| Product weight: | 4,9800 kg |
