Self-Aligning Ball Bearing 1315 TN 75x160x37 mm

With the swiveling inner ring, the self aligning ball bearing 1315-TN offers excellent alignment error compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. Main dimensions according to DIN 630.

Technical Data

Inside (mm):	75
Outside (mm):	160
Width (mm):	37
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	double row
Bore:	cylindrical
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	3
Product weight:	3,5600 kg

Item number: 1315-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 40.56

pcs

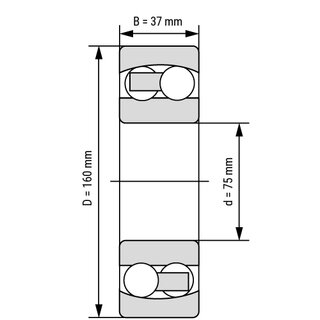

Technical Scribble

Technical Data

Inside (mm):	75
Outside (mm):	160
Width (mm):	37
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	double row
Bore:	cylindrical
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	3
Product weight:	3,5600 kg
