Self-Aligning Ball Bearing 1217 K (tapered) TN 85x150x28 mm

With the swiveling inner ring, the self aligning ball bearing 1217-K-TN offers excellent alignment error compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. Main dimensions according to DIN 630.

Technical Data

Inside (mm):	85
Outside (mm):	150
Width (mm):	28
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,2
Rows Of Balls:	double row
Bore:	tapered (K)
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	2.5
Product weight:	2,0700 kg

Item number: 1217-K-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 47.70

pcs

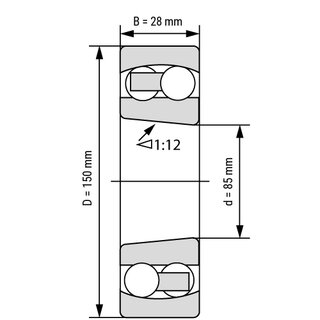

Technical Scribble

Technical Data

Inside (mm):	85
Outside (mm):	150
Width (mm):	28
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,2
Rows Of Balls:	double row
Bore:	tapered (K)
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	2.5
Product weight:	2,0700 kg

Technical Scribble
