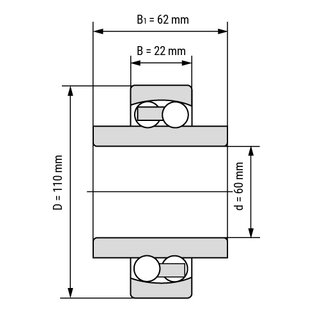

Self-Aligning Ball Bearing (Extended Inner Ring) 11212-TN 60x110x22 mm

With the swiveling and extended inner ring, the self aligning ball bearing 11212-TN offers excellent alignment error compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. The assembly on the shaft is done with a tenon screw. Main dimensions according to DIN 630.

Technical Data

Inside (mm):	60
Outside (mm):	110
Width (mm):	22
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	double row
Bore:	cylindrical
Width Extended Inner Ring (mm):	62
Extended Inner Ring:	both sides
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	2.5
Product weight:	1,5200 kg

Item number: 11212-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 26.45

pcs

Technical Scribble

Technical Data

Inside (mm):	60
Outside (mm):	110
Width (mm):	22
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	double row
Bore:	cylindrical
Width Extended Inner Ring (mm):	62
Extended Inner Ring:	both sides
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	2.5
Product weight:	1,5200 kg
