Technical Scribble

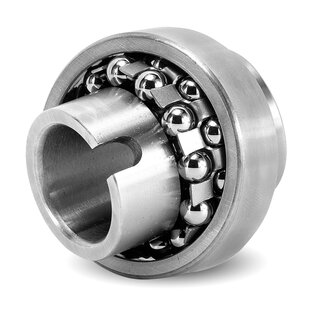

Self-Aligning Ball Bearing (Extended Inner Ring) 11205-TN 25x52x15 mm
With the swiveling and extended inner ring, the self aligning ball bearing 11205-TN offers excellent alignment error compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. The assembly on the shaft is done with a tenon screw. Main dimensions according to DIN 630.

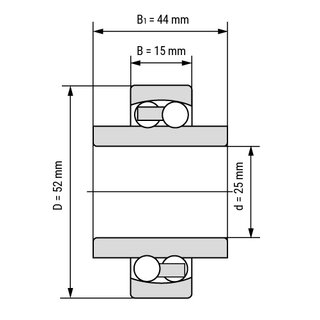

Technical Data
| Inside (mm): | 25 |
| Outside (mm): | 52 |
| Width (mm): | 15 |
| Tolerance for inside (mm): | 0/-0,01 |
| Tolerance for outside (mm): | 0/-0,013 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | double row |
| Bore: | cylindrical |
| Width Extended Inner Ring (mm): | 44 |
| Extended Inner Ring: | both sides |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Plastic |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Permissible angular misalignment: | 2.5 |
| Product weight: | 0,2260 kg |
Item number: 11205-TN
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 8.45
pcs
