Self-Aligning Ball Bearing (Extended Inner Ring) 11204-TN 20x47x14 mm

With the swiveling and extended inner ring, the self aligning ball bearing 11204-TN offers excellent alignment error compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. The assembly on the shaft is done with a tenon screw. Main dimensions according to DIN 630.

Technical Data

Inside (mm):	20
Outside (mm):	47
Width (mm):	14
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Bore:	cylindrical
Width Extended Inner Ring (mm):	40
Extended Inner Ring:	both sides
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	2.5
Product weight:	0,1910 kg

Item number: 11204-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 6.35

pcs

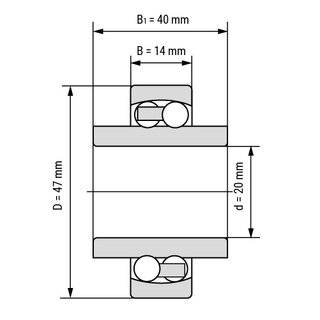

Technical Scribble

Technical Data

Inside (mm):	20
Outside (mm):	47
Width (mm):	14
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Bore:	cylindrical
Width Extended Inner Ring (mm):	40
Extended Inner Ring:	both sides
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	2.5
Product weight:	0,1910 kg
