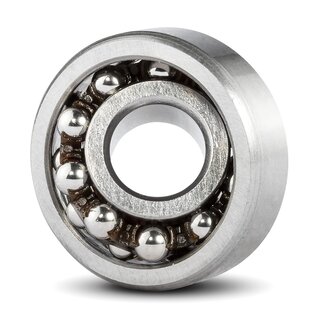

Miniature Self-Aligning Ball Bearing 108-TN 8x22x7 mm

For use in special conditions. The miniature self-aligning ball bearing 108-TN is small and suitable for installation with limited space and on thin shafts. It offers excellent alignment error compensation and can withstand high speeds. Main dimensions according to DIN 630.

Technical Data

Inside (mm):	8
Outside (mm):	22
Width (mm):	7
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Bore:	cylindrical
Extended Inner Ring:	nein
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	3
Product weight:	0,0125 kg

Item number: 108-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 3.19

pcs
