- 08 0307 00

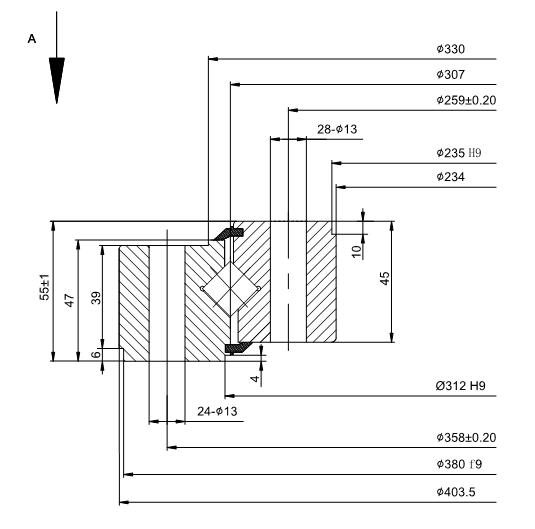

Technical Scribble

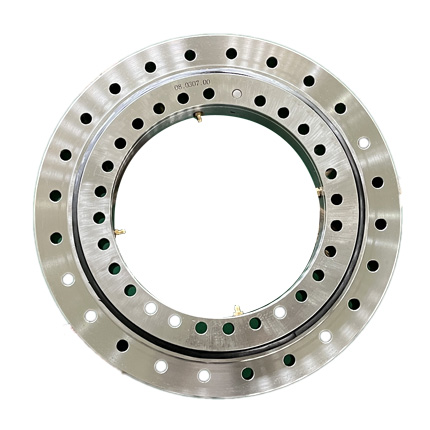

08 0307 00 235 mmx403.5 mmx
Technical Data
| Product Number | 08 0307 00 |
| Series | cross roller |
| Gear | Without Gear |
| Type | Roller |
| Bearing Type | Standard |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 235 mm |
| Outside Diameter Of Outer Ring | 403.5 mm |
| Height Of Overall Bearing Assembly | 55 mm |
| Height Of Inner Ring | 45 mm |
| Height Of Outer Ring | 47 mm |
| Bolt Circle In Inner Ring | 259 mm |
| Bolt Circle In Outer Ring | 358 mm |
| Size Holes In Inner Ring | ref. Drawing |
| Size Holes In Outer Ring | ref. Drawing |
| Number Holes In Inner Ring | 28 |
| Number Holes In Outer Ring | 24 |
| Weight | 26 Kg |
Item number: 08 0307 00
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
price:Inquiry
pcs
Technical Scribble
Technical Data
| Product Number | 08 0307 00 |
| Series | cross roller |
| Gear | Without Gear |
| Type | Roller |
| Bearing Type | Standard |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 235 mm |
| Outside Diameter Of Outer Ring | 403.5 mm |
| Height Of Overall Bearing Assembly | 55 mm |
| Height Of Inner Ring | 45 mm |
| Height Of Outer Ring | 47 mm |
| Bolt Circle In Inner Ring | 259 mm |
| Bolt Circle In Outer Ring | 358 mm |
| Size Holes In Inner Ring | ref. Drawing |
| Size Holes In Outer Ring | ref. Drawing |
| Number Holes In Inner Ring | 28 |
| Number Holes In Outer Ring | 24 |
| Weight | 26 Kg |
